AG series – automatic filters

Produit gamme ag filtres auto

Fully automatic filtration for numerous applications. Hectron AG series are available from 0.5-1 to 500 microns ratings. The cleaning system with suction arm offers an optimum cleaning efficiency with low water use.

The cleaning system is triggered by measuring pressure difference between upstream and downstream; the cleaning frequencies therefore automatically adapt depending on the water load.

These models are supplied ready to use, with automatic control. The AG200, AG300 and AG400 are equipped with indicator lights and a cycle counter.

100%
AUTOMATIC

FROM
0,5 µm

UP TO
340 m3/h

MADE IN
FRANCE

AG100

AG100
  • Stainless steel housing
  • Flow rate up to 8 m3/h
  • Filtration 0.5 – 1 to 500 µm 0,5-1 à 500 µm
  • Max pressure : 5 Bar

Available size (inlet / outlet) :

  • 1’’ BSP

Available option :

  • Version with ACS certificate, for use in potable water networks

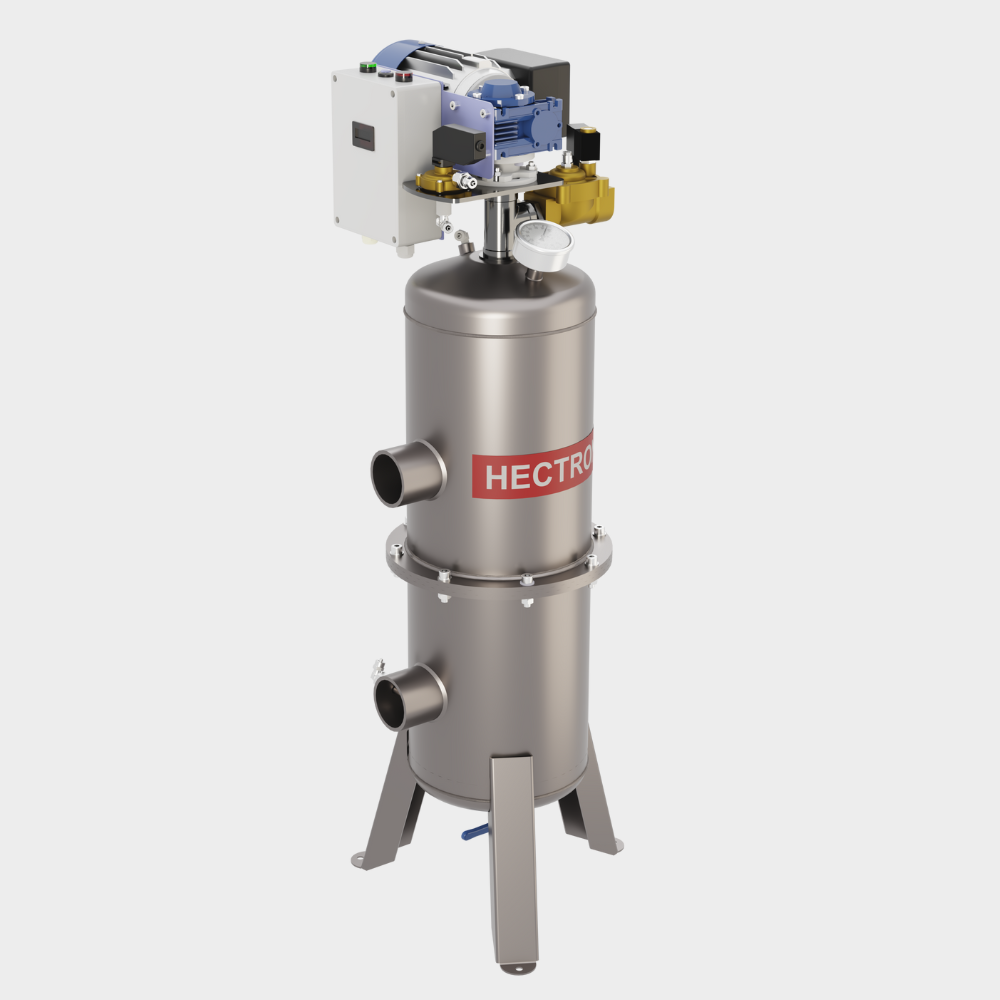

AG200

AG200
  • Stainless steel housing
  • Flow rate up to 45 m3/h
  • Filtration 0,5-1 à 500 µm
  • Max pressure : 5 Bar

Available sizes (inlet / outlet) :

  • 2’’ BSP
  • 3’’ BSP
  • DN80

Available options :

  • Version with ACS certificate, for use in potable water networks
  • Full stainless steel 316L
  • Maximum pressure of 10 or 16 Bar

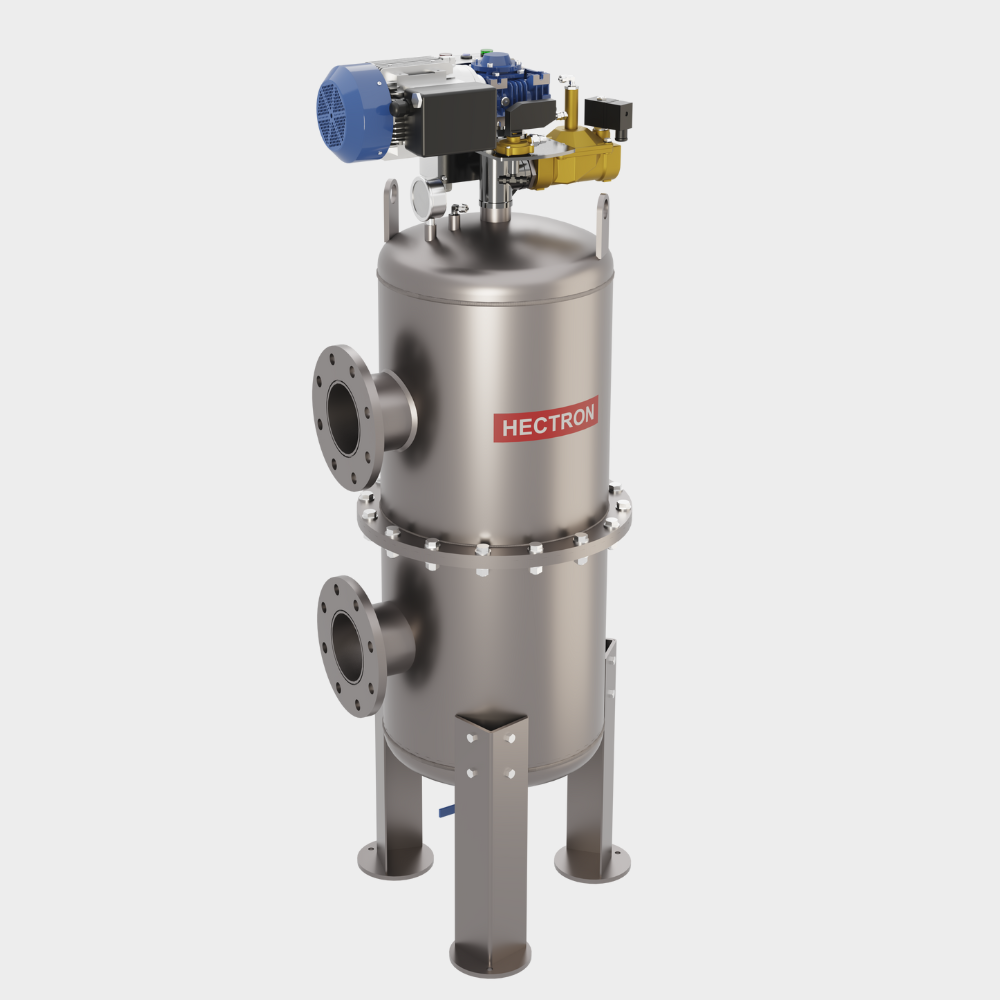

AG300

AG300
  • Stainless steel housing
  • Flow rate up to 120 m3/h
  • Filtration 0,5-1 à 500 µm
  • Max pressure : 5 Bar

Available sizes (inlet / outlet) :

  • 3’’ BSP
  • DN100
  • DN150

Available options :

  • Version with ACS certificate, for use in potable water networks
  • Full stainless steel 316L
  • Maximum pressure of 10 or 16 Bar

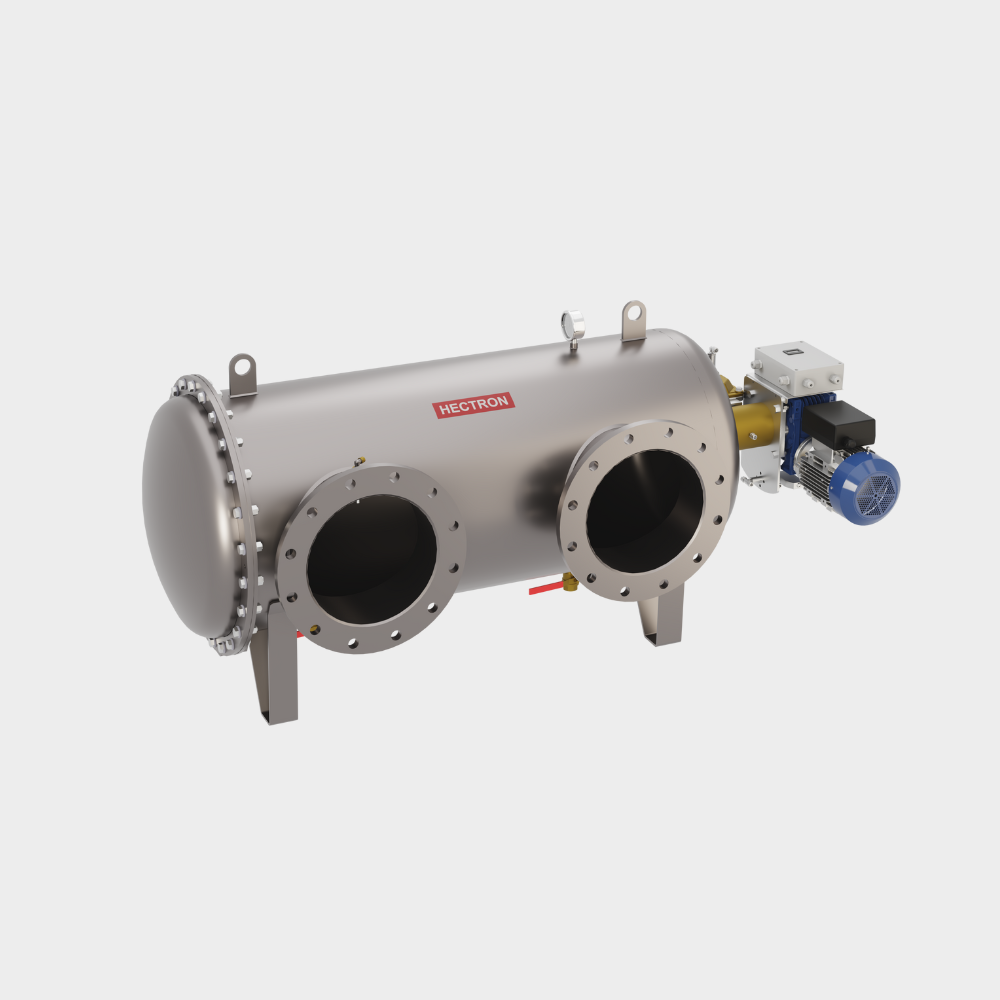

AG400

  • Stainless steel housing
  • Flow rate up to 340 m3/h
  • Filtration 0,5-1 à 500 µm
  • Pression maximale : 5 Bar

Available sizes (inlet / outlet) :

  • DN100
  • DN150
  • DN200
  • DN250

Available options :

  • Version with ACS certificate, for use in potable water networks
  • Full stainless steel 316L
  • Maximum pressure of 10 Bar

Complementary product : upstream pressure sustainer

accessoire mainteneur de pression amont
  • To be connected downstream automatic filters in some cases (see installation diagrams)
  • Brass body

Available sizes :

  • 1’’ BSP
  • 2’’ BSP
  • 3’’ BSP

Other available models :

  • Stainless steel body (1’’ or 2’’)
  • PVC body
  • Cast iron body (DN80 to DN150)
