AS series | automatic filters

Gamme AS | Filtres automatiques basse pression

Mainly used to protect plate heat exchanger, the Hectron AS filters have the benefit of being able to operate at very low pressure: 0.5 bar of upstream pressure is sufficient. They are available for flow rates up to 340 m3 / h.

The washing system is triggered by measuring pressure difference between upstream and downstream; the washing cycles frequency  therefore adapts automatically depending on the water load.

These models are supplied ready to use, with the washing pump and control automation. They include control lights and cycles counter.

100%
AUTOMATIC

FROM
60 µm

UP TO
340 m3/h

MADE IN
FRANCE

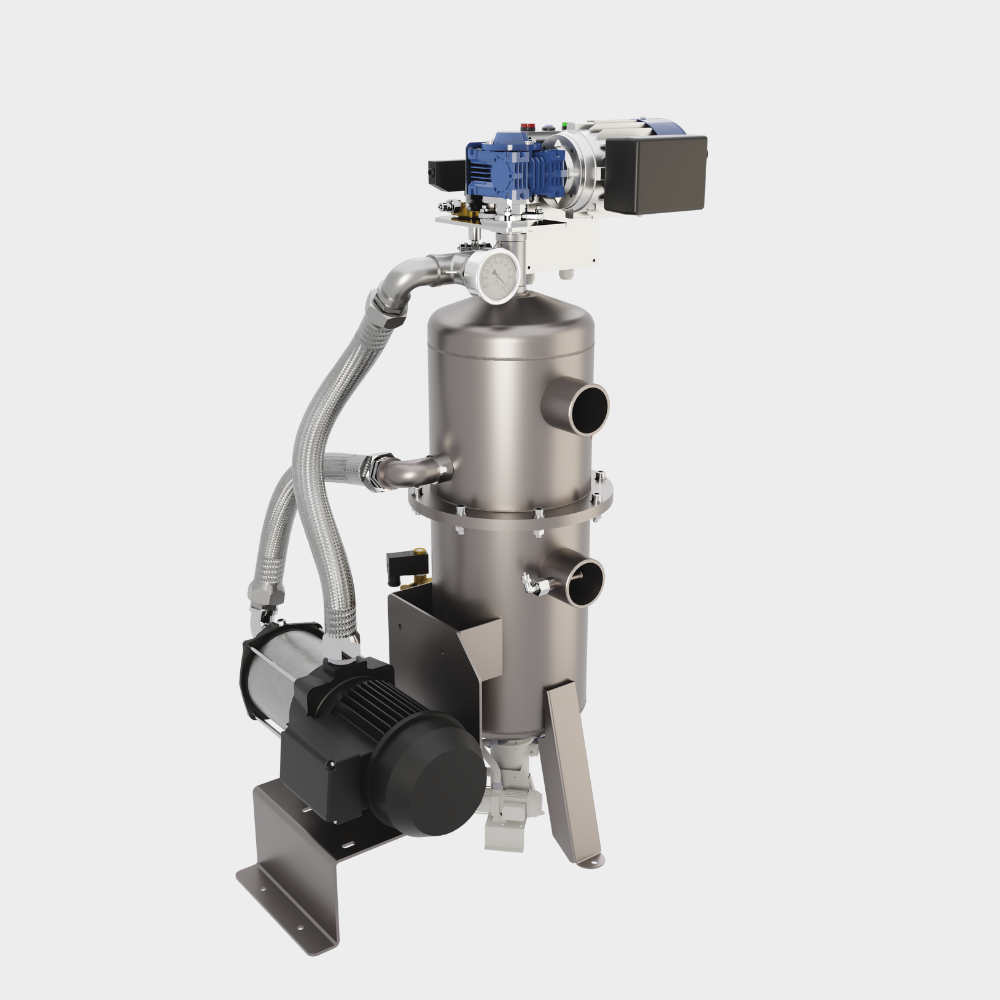

AS200

AS200
  • Stainless steel housing
  • Flow rate up to 45 m3/h
  • Filtration 60 to 400 µm
  • Max pressure : 5 Bar

Available size (inlet / outlet) :

  • 3’’ BSP

Available options :

  • Full stainless steel 316L
  • Maximum pressure of 10 Bar

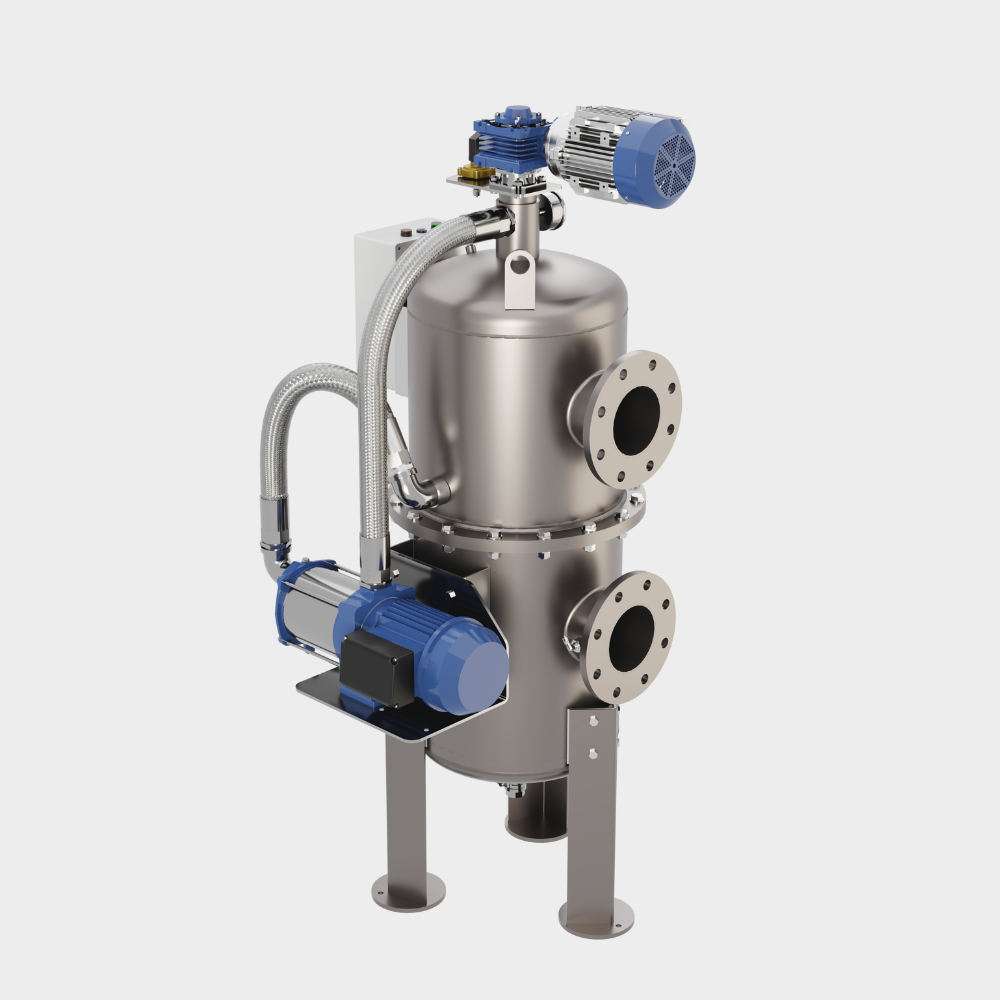

AS300

AS300
  • Stainless steel housing
  • Flow rate up to 120 m3/h
  • Filtration 60 to 400 µm
  • Max pressure : 5 Bar

Available size (inlet / outlet) :

  • DN100
  • DN150

Available options :

  • Full stainless steel 316L
  • Maximum pressure of 10 Bar

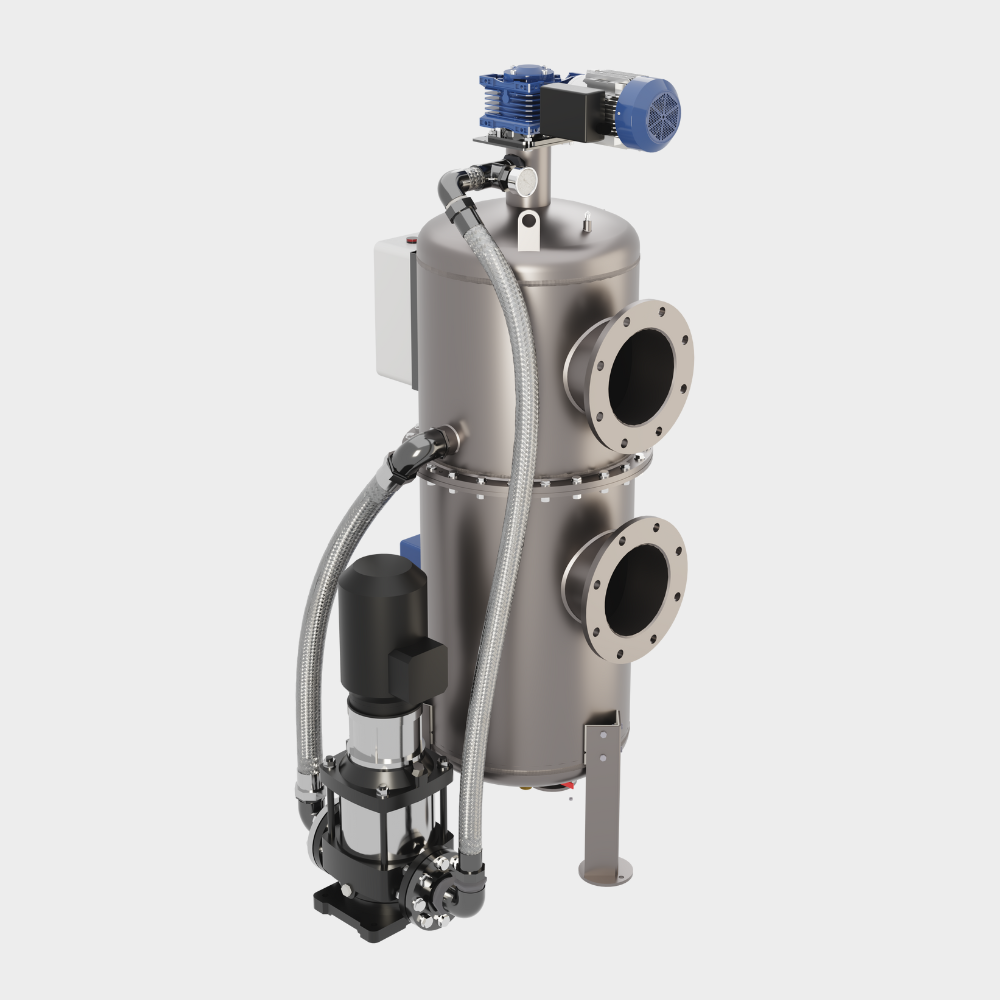

AS400

AS400
  • Stainless steel housing
  • Flow rate up to 340 m3/h
  • Filtration 60 to 400 µm
  • Max pressure : 5 Bar

Available size (inlet / outlet) :

  • DN150
  • DN200
  • DN250

Available options :

  • Full stainless steel 316L
  • Maximum pressure of 10 Bar
